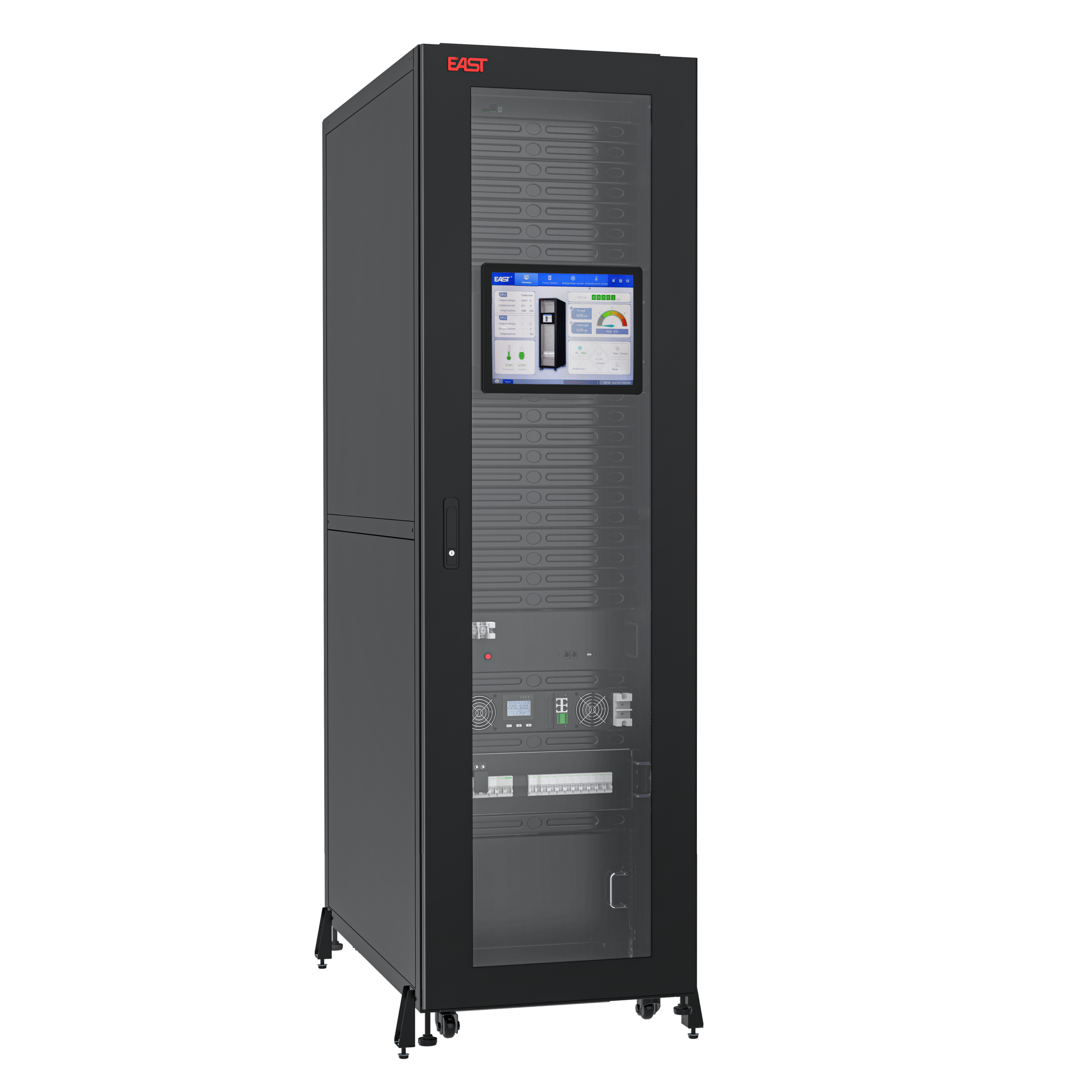

Easy Cube i9

WECHAT CHÍNH THỨC

Mô tả

Single Cabinet	Easy Cube i9 Configuration and Parameters
System	Function cabinet	Standard configuration, 42 U, a maximum of available space 26 U
	IT cabinet	Optional configuration, 42 U, a maximum of available space 40 U
	Aisle type	Cold aisle containment
	Power density range	13 kW
	Battery deployment mode	Battery banks, battery cabinets, battery racks
	Backup time	3-90 min (depends on batteries)
	Installation method	Cement floor/elevated floor
	Power supply system	Single/single-phase
	IP rating	IP 20
	Battery Type	Lithium-ion battery/Lead-acid battery
Cabinet	Dimensions	600 × 1200 × 2000 mm (excluding casters and anchor)
	Front door	Glass door, Spring door device
	Back door	Mesh door
Refrigeration system	Input power supply	220 ~ 230 Vac/50 ~ 60 Hz
	Refrigerating capacity	2.0 kW
	Space	8 U
	Sensible heat factor	1
	Communication interface	485
	Air supply method	Supply air in front and return air in the rear
	Refrigerant	R134a
	Installation	Integrated rack-mounted
Emergency fan system	Input power	220 Vac
	Function	Temperature control can be realized
	Cold aisle at the top	Downside air supply
	Installation	Install at the top of cabinet
Monitoring system	Monitoring system	Linux
	Display screen	15-inch touch screen
	Installation	1 U embedded
	Water logging	Standard configuration, SMS or email alarms (Optional SMS Modem is required)
	Sound and light alarm	Standard configuration, placed in front of the cold aisle inside the cabinet
	Smoke detection	Standard configuration, SMS or email alarms (Optional SMS Modem is required)
	Temperature and humidity	Standard configuration
	Door contacts	Standard configuration
	Spring door device	Standard configuration
	PDU monitoring	Support
	UPS monitoring	Support
	Air conditioner monitoring	Support
	Fire monitoring	Support
	Lighting	Standard configuration, mounting on the top, lights on when the door opens, off when the door closes
	Communication interface	RJ45
	Protocol format	Modbus TCP/IP
Power distribution	Distribution switch	Well-known brands of switches + class C SPD
	Mains/UPS feeding branch	Three-way mains feeding (one-way air conditioning + two-way IT)/two-way UPS feeding (two-way IT)
	Power acquisition	Intelligent power detection, mains branches off to make data acquisition
	Installation	3 U, rack-mounted
PDU	Vertical common model	Standard configuration, standard model with 12 ways
PDU	Vertical smart model	Optional, 10 ways
Firefighting	Firefighting module	Optional
Installation	Flange cover	Standard configuration, 1 U*15
	Tray	Standard configuration, 1 set
	Rail	Standard configuration, 8 sets
	Cable accessories	Standard configuration, communication cables/power cables
