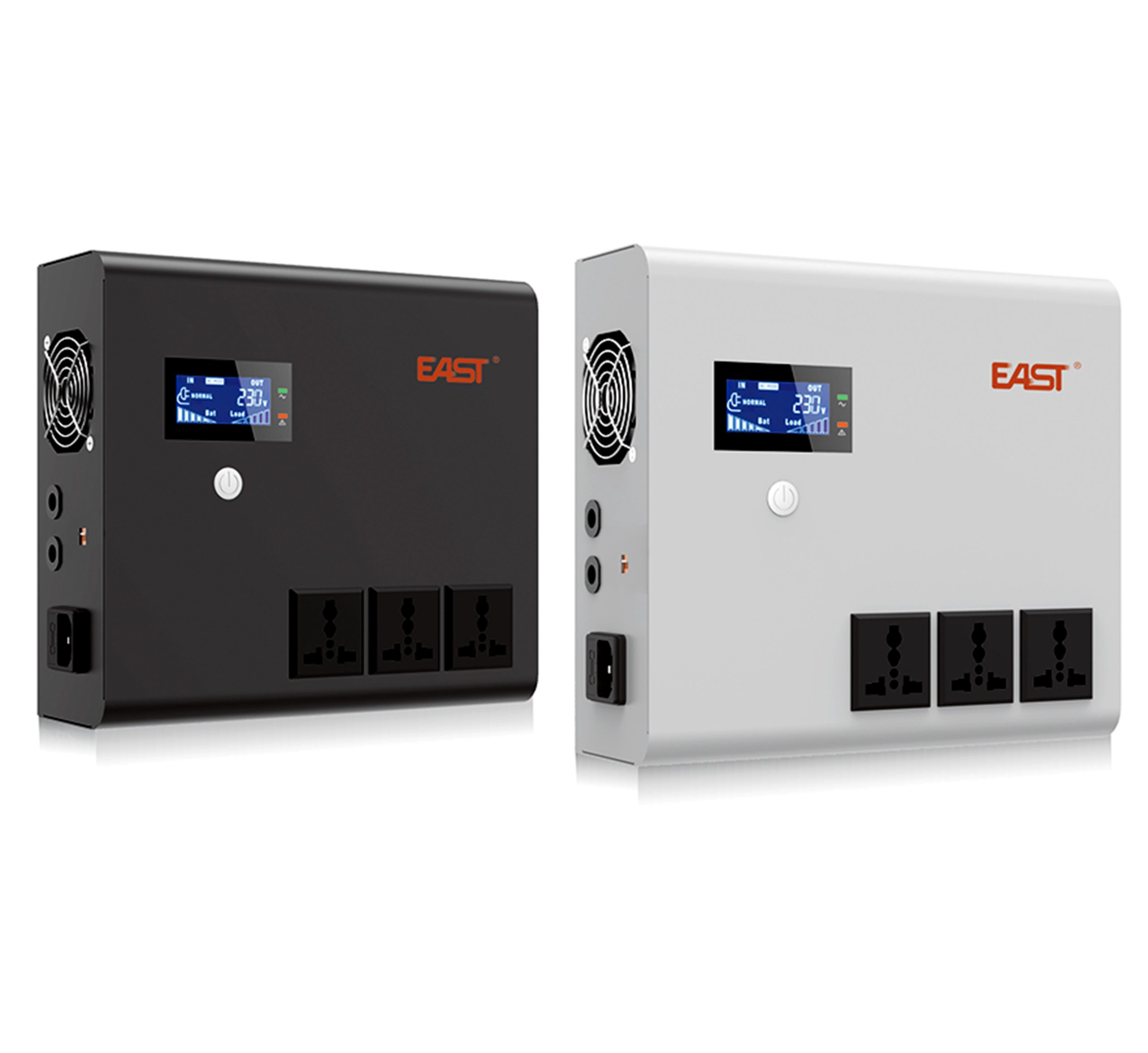

Modified Sine Wave Inverter 1200-2400VA

WECHAT CHÍNH THỨC

Mô tả

MODEL	1200 VA	1500 VA	2400 VA
Capacity	720 W	900 W	1440 W
INPUT
Rated voltage	220 / 230 / 240 Vac (selectable)
Voltage range	220 / 230 / 240 Vac, -22% / -59% ~ +26%, ± 5 Vac (selectable)
Rated frequency	50 / 60 Hz (auto-sensing)
Frequency range	± 10% (default), ± 5% ~ 15% (selectable)
OUTPUT
Power factor	0.6
Output voltage	Battery mode: 220 / 230 / 240 Vac ± 10% (selectable) Mains mode: synchronized with utility power
Output frequency	Battery mode: 50 / 60 Hz ± 1% (selectable); Mains mode: synchronized with utility power
Output waveform	Battery mode: square wave; Mains mode: synchronized with utility power
Inversion efficiency	≥ 83% (max.)		≥ 85% (max.)
IT equipment	Yes
Half-wave load	≤ 50% (rated load)
Inductive load	≤ 30% (rated load)
BATTERIES
Rated voltage	12 Vdc		24 Vdc
Charging current (Max.)	20 / 10 A ± 3 A (selectable)		15 / 10 A ± 3 A (selectable)
Equalizing charge voltage	Single battery 14.2 ± 0.3 Vdc (default), 13.6 ~ 15.0 Vdc (selectable)
Floating charge voltage	Single battery 13.6 ± 0.3 Vdc
Low voltage alarm	Single battery 10.8 ± 0.3 Vdc (default), 9.6 ~ 13.0 Vdc (selectable)
Low voltage shutdown	Single battery 10.2 ± 0.3 Vdc (default), 9.6 ~ 12.0 Vdc (selectable)
Overvoltage protection	Single battery 15.0 ± 0.3 Vdc
Overvoltage recovery	Single battery 13.6 ± 0.3 Vdc
SYSTEM
Transfer time	≤ 8 ms (typical), ≤ 15 ms (max.)
Protections	Overload, short circuit, over-temperature, output over/under-voltage, excessive low battery
Overload times (Mains mode)	≥ 110% for 120 s, ≥ 125% for 60 s, ≥ 150% for 10 s, ≥ 200% for 1 s
Overload times (Battery mode)	≥ 110% for 60 s, ≥ 125% for 5 s, ≥ 150% for 1 s
Communication interface	No
Panel display	LCD + LED
OTHERS
Operating temperature	0 ~ 45℃
Operating humidity	0 ~ 95% (no-condensing)
Altitude	≤ 1000 m (Above 1000 m, derating 1% for each additional 100 m)
IP rating	IP 20
Cooling	Forced-air cooling
Noise	< 45 dB
Dimensions (W x D x H) (mm)	245 x 220 x 80
Packaged dimensions (W x D x H) (mm)	315 x 290 x 156
Net weight (kg)	2.66	2.68	2.82
Gross weight (kg)	3.02	3.04	3.18
